Coaxial protection devices for transmission and reception technology

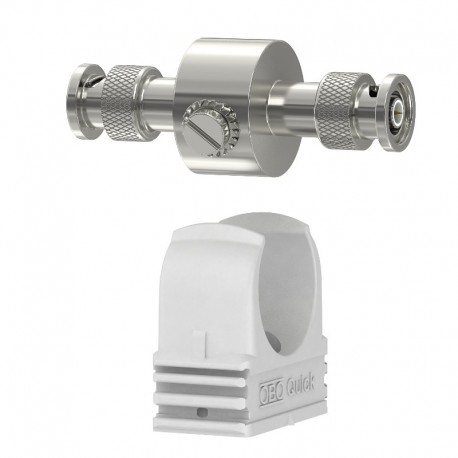

Coaxial protection device for BNC connection: male/male

Coaxial data cable protection devices

• Basic protection

• High pulsed current carrying capacity 2 x 2.5 kA (10/350 μs)

• Simple installation (adapter plug), m = plug/f = female connector

• Various plug combinations

• With BNC connector

• Optimised transmission behaviour

• Including OBO M25 Quick clip for simple installation

DS-BNC M/M
Article number			5093 26 0
Maximum continuous voltage AC	UC	V	130 V
Maximum continuous voltage DC	UC	V	185 V
Category			Type 1+2 / D1+C2
Lightning protection zone LPZ			0→2
Number of poles			1
Rated current	IL	A	10 A
Wave resistance	ZL	Ω	50 Ω
Impulse durability wire-wire		kA (8/20 μs)	C2: 10 kV / 5 kA (8/20 μs)
Impulse durability wire-earth			C2: 10 kV / 5 kA (8/20μs)
Impulse discharge current (10/350)	Iimp	kA	2.5 kA
Total discharge current (8/20)		kA	10 kA
Total discharge current (10/350)			5 kA
Protection level		V	<800 V
Frequency range		GHz	0 - 1,3 GHz
Insertion loss	S21	dB	≤0,95 dB
Return loss	S11	dB	≥14 dB
Temperature range	ϑ	°C	-40 - +80 °C
Installation type			Connector/cable adapter
Connection system			BNC
Protection rating			IP40
Shielding connection available			Yes
Shield connection			Direct
Testing standard			IEC 61643-21
