PV lightning and surge protection bases

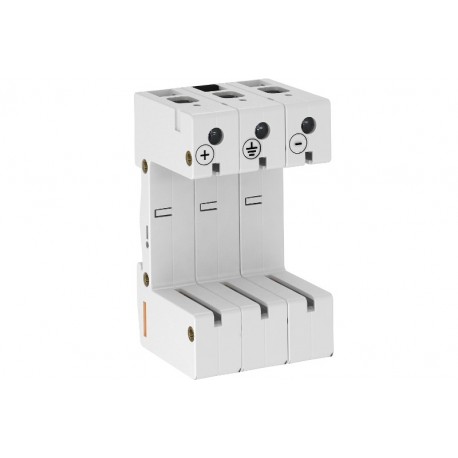

PV base, 3-pole in Y circuit

V 20-C/3-PH-Y: Bottom part for photovoltaic systems up to Uoc = 1,000 V (Y-circuit)

• Suitable for V 25-B+C upper parts type 1+2 combination arrestor

• Suitable for V 20-C upper parts type 2 surge arrestor

• Protection circuit against transverse and longitudinal voltages

• Y-protection circuit

• Low protection level < 4.0 kV (Uoc max = 1,000 V DC with V20-C/0-440)

• Low protection level < 3.0 kV (Uoc max = 900 V DC with V25-B+C/0-385)

• Low protection level < 2.6 kV (Uoc max = 600 V DC with V50-C/0-280)Indicated connectorsApplication: In photovoltaic systems between PH modules and inverters.
